An Introduction to Thiadiazole Derivatives in Metal Deactivators

An Introduction to Thiadiazole Derivatives in Metal Deactivators

Thiadiazole Derivatives are a class of highly effective organic metal deactivators. Their primary function is to inhibit the catalytic effect of metal ions (especially copper ions) on the oxidation of organic materials such as plastics, fuels, and lubricants, thereby significantly extending the service life and stability of these products.

The most prominent and widely used derivatives are based on 2,5-dimercapto-1,3,4-thiadiazole (DMTD).

Chemical Structure and Key Derivatives

The thiadiazole ring is a five-membered heterocyclic compound containing two nitrogen atoms and one sulfur atom. For metal deactivation, derivatives of 1,3,4-thiadiazole hold the most commercial importance.

• Parent Structure: 2,5-dimercapto-1,3,4-thiadiazole (DMTD)

• This molecule contains two highly reactive mercaptan (-SH) groups, which can strongly react with metal ions.

• Common Commercial Derivatives:
  To improve solubility and compatibility in oils or polymers, the mercaptan groups of DMTD are often alkylated to form sulfide derivatives. A prime example is:

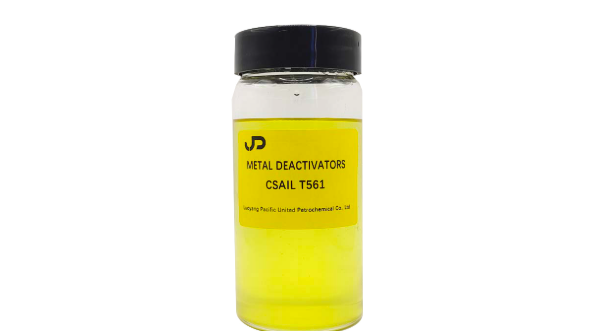

  A specific product falling under this category is the Thiadiazole tert-dodecyl mercaptan condensate (CSAIL T561) produced by UNPChemicals. This product is a condensation product of DMTD with tert-dodecyl mercaptan. The introduction of the large, branched alkyl chain (tert-dodecyl) greatly enhances the oil solubility of the molecule, making it exceptionally effective for use in hydrocarbon-based systems like lubricants and fuels. The "CSAIL T561" is the product code used by UNPChemicals for this high-performance metal deactivator.

• Thiadiazole Derivative T561: This is a common industry designation for a specific type of thiadiazole condensate.

Mechanism of Action (Core Principle)

The core mechanism of thiadiazole derivatives is chelation.

1. The Root Cause: Trace metal ions (particularly copper, from catalyst residues, equipment wear, or copper components) can act as powerful catalysts, accelerating the reaction of hydrocarbons with oxygen. This leads to:

• Fuels/Lubricants: Formation of sludge, deposits, increased viscosity, and higher acid number.

• Polymers (e.g., Polyethylene): Chain scission (embrittlement) or cross-linking (hardening), leading to loss of mechanical properties.

2. The Passivation Process:

• The nitrogen and sulfur atoms in the thiadiazole derivative molecule possess lone pairs of electrons, making them excellent ligands.

• They form stable, ring-shaped complexes with metal ions (e.g., Cu⁺, Cu²⁺), known as chelates.

• This process effectively "handcuffs" the metal ion, preventing it from interacting with oxygen and hydrocarbons, thus deactivating its catalytic activity.

3. Formation of a Protective Film:

• These metal-thiadiazole chelates are often insoluble and form a dense, inert film on metal surfaces.

• This film not only passivates ions in solution but also protects the bulk metal from further corrosion and ionization, providing long-lasting protection.

Key Characteristics and Advantages

1. High Efficiency: Very low treat rates (typically 5-50 ppm) are sufficient to produce significant passivation effects.

2. Specificity: Exceptionally effective at passivating copper and its alloys, making it a top-tier "copper passivator."

3. Multifunctionality: Besides their primary role, many thiadiazole derivatives also offer:

• Antioxidant Properties: They can capture free radicals, supporting the primary antioxidant.

• Extreme Pressure/Anti-wear Properties: Decomposition products can form lubricious sulfide films on metal surfaces, reducing wear.

• Corrosion Inhibition: Protect yellow metals (copper, bronze) from corrosion.

4. Excellent Thermal Stability: They remain effective at elevated temperatures.

Primary Application Areas

1. Fuels and Lubricants:

• Gasoline, Jet Fuel: Prevent oxidation and gum formation caused by copper ions from pipelines or copper heat exchangers.

• Industrial Lubricants, Engine Oils: Protect copper-alloy bearings and bushings, and inhibit oil degradation via metal catalysis. Products like CSAIL T561 are ideally formulated for these applications due to their superior oil solubility.

• Transformer Oil: Protect copper windings to ensure long-term stability of the insulating oil.

2. Polymer Industry:

• Polyolefins (e.g., Polyethylene, Polypropylene): Critical for wire and cable insulation materials. Copper wires catalyze the degradation of polyethylene, causing the insulation to crack. Adding thiadiazole deactivators is a standard practice for producing qualified insulation for copper conductors.

3. Other Areas: Hydraulic fluids, transmission fluids, and metalworking fluids.

Comparison with Other Metal Deactivators

In practice, thiadiazole derivatives are sometimes blended with benzotriazole derivatives to broaden the spectrum of activity against different metal ions and achieve a synergistic effect.

Summary

Thiadiazole Derivatives are a class of high-performance organic metal deactivators that function via a powerful chelation mechanism. By forming stable, inert complexes with metal ions (especially copper), they effectively block metal-catalyzed oxidation reactions. They are extensively used in fuels, lubricants, and polymers to ensure the long-term stability of these products under demanding conditions. Specific products like UNPChemicals' Thiadiazole tert-dodecyl mercaptan condensate (CSAIL T561) exemplify the advanced, tailored solutions available within this class of additives, making them indispensable in modern industry.
