Thiadiazole Derivative T561（CAS 59656-20-1）: A Multifunctional Guardian for Metal Surfaces in Modern Lubrication
Introduction: The Critical Challenge of Copper Corrosion
In the intricate world of industrial machinery and automotive engines, lubrication is the lifeblood that ensures smooth operation, reduces wear, and extends component life. However, the very formulations designed to protect mechanical systems can sometimes introduce unforeseen challenges. One of the most persistent and damaging issues is the corrosion of non-ferrous metals, particularly copper and its alloys (e.g., brass, bronze). These metals are ubiquitous in critical components such as bearings, bushings, heat exchangers, and electro-hydraulic control valves.
Copper corrosion not only weakens the components themselves but also generates soluble copper ions that can plate out onto steel surfaces, acting as a catalyst for the oxidation of the base oil. This catalytic activity accelerates oil degradation, leading to sludge, varnish, and increased acidity, which in turn can cause filter plugging, impaired heat transfer, and severe wear of other components. Therefore, effectively inhibiting copper corrosion is not a secondary feature but a fundamental requirement for high-performance lubricants.
Among the most effective solutions to this problem is a class of chemicals known as thiadiazole derivatives. One prominent example, Thiadiazole Derivative T561（CAS 59656-20-1）, has emerged as a superior, multifunctional additive that goes beyond simple corrosion inhibition to offer a suite of performance-enhancing benefits.
Delving into the Chemistry: The Power of the Thiadiazole Ring
The efficacy of T561 lies in its unique molecular architecture, centered around a five-membered heterocyclic ring containing two nitrogen atoms and one sulfur atom—the 1,3,4-thiadiazole ring. This structure is the key to its functionality.
The molecule's mechanism of action is multifaceted:
Chemisorption and Protective Film Formation: The T561 molecule is polar and has a strong affinity for metal surfaces. The sulfur and nitrogen atoms in the thiadiazole ring can coordinate with the copper atoms on the surface, forming a strong, insoluble, and tenacious chemisorbed film. This ultra-thin layer acts as a physical barrier, isolating the copper from corrosive agents present in the oil, such as acidic degradation products, oxygen, and water. This passive layer is highly stable, providing long-term protection even under severe operating conditions.
Passivation of Catalytic Sites: The protective film formed by T561 effectively "passivates" the copper surface. By coating the active sites on the metal, it prevents the copper from acting as a catalyst for the oxidative degradation of the base oil. This is a critical contribution to the lubricant's overall service life and thermal stability.
Metal Deactivator Function: T561 can chelate or complex with free copper ions that may already be present in the oil system from prior corrosion events. By sequestering these ions, it prevents them from circulating and depositing on ferrous surfaces (like steel gears or crankshafts) where they would catalyze further, rapid oxidation. This metal deactivation property is crucial for maintaining oil cleanliness.
Beyond Corrosion Inhibition: The Multifunctional Nature of T561
While its primary designation is a copper corrosion inhibitor, T561's value proposition is significantly broader, making it a versatile and cost-effective additive.
1. Synergy and Antagonism with Other Additives: The ZDDP Example
A key application for T561, as highlighted in the product introduction, is its use in hydraulic oils to counteract corrosion caused by Zinc Dialkyl Dithiophosphates (ZDDP). ZDDP is an exceptionally effective anti-wear and antioxidant additive used extensively in hydraulic fluids, engine oils, and gear oils. However, a well-known drawback of some types of ZDDP is their tendency to form corrosive by-products upon thermal decomposition, which can attack yellow metals.
T561 exhibits a powerful synergistic effect in such formulations. It does not interfere with the primary anti-wear function of ZDDP. Instead, it specifically counteracts its corrosive side effects. The protective film formed by T561 shields the copper surfaces from the aggressive sulfur compounds generated by ZDDP breakdown. This allows formulators to leverage the excellent anti-wear properties of ZDDP without compromising the integrity of copper-containing components, enabling lubricants to pass stringent industry specifications that require compatibility with yellow metals.
2. Hydrolytic Stability Enhancement
Hydrolytic stability refers to a fluid's resistance to chemical decomposition in the presence of water. Water contamination is a common problem in industrial lubricating systems, entering through condensation, cooling system leaks, or environmental humidity. Many ester-based additives and certain other components can hydrolyze, breaking down into acidic components that promote corrosion and sludge.
Thiadiazole derivatives like T561 are inherently hydrolytically stable. Their chemical structure is resistant to attack by water. When incorporated into a formulation, they help maintain the fluid's integrity in wet environments. By preventing the formation of acidic hydrolysis products, T561 indirectly contributes to corrosion control and enhances the lubricant's ability to handle incidental water contamination, a critical requirement for long-life industrial oils.
3. Secondary Antioxidant Contribution
Although not a primary antioxidant like hindered phenols or aromatic amines, T561 provides a valuable secondary antioxidant effect, especially in paraffinic base oils. The mechanism is linked to its metal passivation function. By deactivating copper, a potent oxidation catalyst, T561 significantly slows down the initiation and propagation of the oil oxidation chain reaction. This extends the lubricant's oxidation induction time, reduces the rate of viscosity increase, and minimizes the formation of harmful deposits. For formulators, this means that a smaller treat rate of primary antioxidants may be required, or the overall oxidative life of the product is substantially enhanced.
Key Application Areas: Where T561 Shines
The multifunctional profile of T561 makes it suitable for a wide range of demanding applications:
Antiwear Hydraulic Oils: This is a primary application. Modern hydraulic systems, particularly those using servo valves with fine tolerances and copper alloy components, demand exceptional copper corrosion protection (as per standards like ASTM D130). T561 helps formulations meet specifications such as Denison HF-0, HF-1, and HF-2, which include rigorous bench tests like the TOST (Thermal Oxidation Stability Test) and hydrolytic stability tests. Its ability to manage ZDDP-related corrosion is pivotal here.
Industrial Gear Oils: Gearboxes, especially in wind turbines and paper mills, often use copper alloy bearings or heat exchangers. The high temperatures and potential for water ingress in these systems make corrosion protection vital. T561 helps gear oils meet the requirements of specifications like AGMA and ISO, including the FZG gear test and copper corrosion tests.
High-Quality Gasoline and Diesel Engine Oils: While less common than in industrial oils, some engine designs incorporate copper-alloy components. More importantly, the metal deactivation property of T561 is beneficial. It helps control the catalytic effect of copper wear debris from bushings or other sources, thereby contributing to the oil's longevity and helping to prevent low-temperature sludge and high-temperature varnish.
Turbine Oils and Circulating Oils: These systems are designed for long service life and often feature copper-based heat exchangers. The superior oxidation stability and water separation properties imparted by T561 are highly desirable in these applications.
Metalworking Fluids: In some specialized metalworking formulations, particularly those that come into contact with copper alloys, T561 can be used to prevent staining and corrosion of the workpiece.
Performance Testing and Industry Standards
The performance of T561 is validated through a series of standardized tests:
ASTM D130 Copper Strip Corrosion Test: This is the fundamental test, where a polished copper strip is immersed in the fluid at a specified temperature for a set duration. T561 enables lubricants to achieve ratings of "1a" (light tarnish) or "1b" (slight tarnish), indicating excellent protection, even after extended aging.
Cincinnati Machine P-38, P-55, P-75 (MSD Bench Tests): As mentioned in the introduction, T561 is "useful for passing the MSD bench test." These are critical tests for hydraulic oils seeking Denison approval, simulating the stability of the fluid under severe thermal and oxidative stress in the presence of copper and steel catalysts.
Hydrolytic Stability Tests (e.g., ASTM D2619): These tests measure the fluid's resistance to water, and T561-containing formulations typically show low acidity change and minimal copper weight loss.
Environmental and Handling Considerations
Modern thiadiazole derivatives like T561 are developed with consideration for environmental and safety regulations. They are typically formulated to have low volatility and are used at low treat rates (often between 0.1% to 0.5% by weight), minimizing their environmental footprint. However, as with all industrial chemicals, safe handling procedures, including the use of personal protective equipment (PPE) as outlined in the Safety Data Sheet (SDS), must be followed.
Conclusion: An Indispensable Tool for the Lubricant Formulator
Thiadiazole Derivative T561 represents a pinnacle of modern additive technology. It transcends its primary role as a highly effective copper corrosion inhibitor to become a multifunctional performance enhancer. Its unique ability to synergize with antiwear agents like ZDDP, enhance hydrolytic stability, and provide secondary antioxidant effects makes it an indispensable component in formulating advanced, durable, and reliable lubricants.

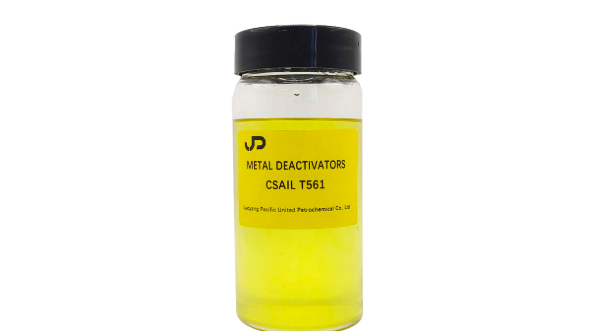

Thiadiazole tert-dodecyl mercaptan condensate CSAIL T561
Thiadiazole tert-dodecyl mercaptan condensate CSAIL T561 is a liquid ashless metal deactivator with extreme pressure and oxidation resistance effects. Used for various automotive and industrial lubricating oils and metalworking fluid. At very low concentration, it can effectively prevent the corrosion of active sulfur on copper and copper alloys.
