Application of Industrial Gear Oil Additive Packages in Wind Turbine Gearboxes
Wind power generation, as a crucial pillar in the global renewable energy sector, has witnessed a continuous and rapid growth in installed capacity in recent years. According to the statistics of the International Renewable Energy Agency (IRENA), by the end of 2023, the global cumulative installed wind power capacity had exceeded 837GW, which was more than three times higher compared to that ten years ago. In a wind power generation system, the wind turbine gearbox, as a core transmission component, plays a key role in converting the low-speed and high-torque output of the wind rotor into the high-speed and low-torque required by the generator. Its operating status directly affects the power generation efficiency and reliability of the entire wind turbine unit.
The working environment of wind turbine gearboxes is extremely complex and harsh. In the outdoor environment, the gearbox not only has to withstand high dynamic loads and alternating stresses but also adapt to extreme temperature variations, ranging from extremely cold temperatures of -40°C to high temperatures of 60°C. At the same time, it also has to resist the erosion of environmental factors such as sand and dust and humid air. In addition, wind turbine gearboxes are usually installed in the nacelle at high altitudes, which makes maintenance difficult and costly. The cost of a single shutdown for maintenance can reach hundreds of thousands of yuan. Therefore, extremely high requirements are imposed on the gear oil used. Ordinary industrial gear oil is difficult to meet the special working conditions of wind turbine gearboxes. However, industrial gear oil additive packages, through scientific formulation, can significantly enhance the comprehensive performance of gear oil and become a key factor in ensuring the stable operation of wind turbine gearboxes.
Specific Application Scenarios of Industrial Gear Oil Additive Packages in Wind Turbine Gearboxes
Gear Meshing Area
Gear meshing is the core link for the wind turbine gearbox to achieve power transmission. This area bears huge contact pressures and frictional forces during operation. Taking the gearbox of a typical 2MW doubly-fed wind turbine as an example, the contact pressure on the gear meshing surface can reach over 2000MPa. Under such high-load working conditions, the gear surface is extremely prone to failure forms such as wear and pitting. The extreme pressure and anti-wear agents in the industrial gear oil additive package can form a tough protective film on the gear surface, effectively reducing the friction coefficient and minimizing wear. When the contact pressure on the gear surface reaches a certain level, the active elements (such as sulfur, phosphorus, chlorine, etc.) in the extreme pressure and anti-wear agents will chemically react with the metal surface to generate a chemical reaction film. This film has good compressive and shear resistance and can withstand a pressure of up to 3000MPa, thus protecting the gear surface from damage.
Bearing Lubrication Area
The bearings in a wind turbine gearbox play an important role in supporting the shaft system and transmitting loads. Due to the vibration and impact of the gearbox, the bearings are subjected to complex alternating loads during operation, which can easily lead to fatigue wear and lubrication failure. At the same time, the heat generated by the high-speed rotation of the bearings can also cause the loss of lubricating grease and oxidation deterioration. The antioxidants, rust inhibitors, and lubrication performance improvers in the industrial gear oil additive package can effectively solve these problems. Antioxidants can inhibit the oxidation reaction of the lubricating oil and extend the service life of the oil product. Rust inhibitors form a dense protective film on the metal surface to prevent the erosion of water and corrosive gases on the bearings. Lubrication performance improvers can enhance the lubrication performance of the lubricating oil under boundary lubrication conditions and reduce the friction and wear of the bearings.
Sealing Components
The sealing components of a wind turbine gearbox are used to prevent the leakage of lubricating oil and the entry of external contaminants. During long-term operation, the seals will be affected by the chemical erosion of the lubricating oil, temperature changes, and mechanical stresses, resulting in a decline in sealing performance. The additives in the industrial gear oil additive package can improve the compatibility between the lubricating oil and the sealing materials, reducing the swelling and corrosion of the seals. At the same time, by adjusting the viscosity and surface tension of the lubricating oil, the leakage tendency of the lubricating oil is reduced, ensuring the stability of the lubrication environment inside the gearbox.
Performance Requirements of Industrial Gear Oil Additive Packages for Wind Turbine Gearboxes
High-temperature Resistance
During the operation of a wind turbine gearbox, a large amount of heat is generated due to gear meshing and bearing friction, resulting in an increase in oil temperature. In a high-temperature environment, the oxidation rate of the lubricating oil accelerates, and it is prone to generating deposits such as sludge and paint film. These deposits can affect the lubrication effect and even lead to gearbox failures. Therefore, industrial gear oil additive packages must have excellent high-temperature resistance. The high-performance antioxidants contained in them can effectively inhibit the oxidation reaction of the lubricating oil at high temperatures, extending the oxidation induction period of the lubricating oil to more than twice that of ordinary lubricating oil. At the same time, by adding high-temperature detergents and dispersants, the oxidation products are promptly removed, keeping the lubricating oil clean and ensuring that the gearbox can still operate normally at a high temperature of 120°C.
Anti-fatigue Performance
Wind turbine gearboxes are constantly under alternating loads for a long time, which can cause fatigue cracks on the surfaces of gears and bearings, and eventually lead to fatigue failure. The anti-fatigue additives in the industrial gear oil additive package can form an elastic protective film on the metal surface, absorbing and dispersing stresses and delaying the generation and propagation of fatigue cracks. Research shows that using gear oil containing high-efficiency anti-fatigue additives can increase the fatigue life of gears by more than 30%. In addition, the anti-fatigue additives can also repair slightly worn metal surfaces, further enhancing the anti-fatigue performance of the gearbox.
Low-temperature Fluidity
In cold regions, wind turbine gearboxes face the problem of difficult low-temperature startup. When the ambient temperature is below -30°C, ordinary lubricating oil becomes viscous and its fluidity deteriorates, making it difficult or even impossible to start the gearbox. Industrial gear oil additive packages, by adding pour point depressants and low-temperature fluidity improvers, can significantly reduce the pour point and cloud point of the lubricating oil, enabling it to maintain good fluidity even at a low temperature of -40°C. At the same time, these additives can also improve the pumping performance of the lubricating oil at low temperatures, ensuring that all lubrication parts of the gearbox can be quickly and fully lubricated at the moment of startup.
Anti-wear Performance
As mentioned above, the gears and bearings of wind turbine gearboxes are prone to wear under high-load working conditions. The anti-wear performance of industrial gear oil additive packages is the key to ensuring the long service life of the gearbox. In addition to extreme pressure and anti-wear agents, nano-scale anti-wear materials are also added to the additive package. These nano-particles can fill the microscopic pits on the gear surface, forming a smoother surface and further reducing friction and wear. Experimental data shows that using gear oil containing nano-scale anti-wear materials can reduce the wear amount of gears by more than 40%.
Anti-emulsification Performance
During the operation of a wind turbine gearbox, it will inevitably come into contact with water, especially in humid coastal areas or high-humidity environments. If the anti-emulsification performance of the lubricating oil is poor, water will mix with the lubricating oil to form an emulsion, which will damage the lubrication performance of the lubricating oil and accelerate the corrosion of metal components. The demulsifiers in the industrial gear oil additive package can quickly separate the water mixed into the lubricating oil, keeping the lubricating oil pure and ensuring its good lubrication performance. Even when the water content is as high as 1%, the gear oil containing high-efficiency demulsifiers can still maintain stable lubrication performance.
Application Case Analysis of Industrial Gear Oil Additive Packages in Wind Turbine Gearboxes
Case 1: Application of 2MW Gearbox in a Certain Offshore Wind Farm
A certain offshore wind farm installed 20 2MW doubly-fed wind turbine units. In the initial operation stage, ordinary industrial gear oil was used. After running for 6 months, problems such as excessively high oil temperature and increased vibration occurred in the gearbox. Upon inspection, it was found that there were obvious wear and pitting phenomena on the gear surface, and the bearings also showed fatigue spalling. To solve these problems, the wind farm used a special gear oil formulated with an industrial gear oil additive package containing high-performance extreme pressure and anti-wear agents, antioxidants, and anti-fatigue additives.
After replacing the gear oil, through one year of operation monitoring, the average oil temperature of the gearbox decreased by 15°C, and the vibration value decreased by 30%. Through oil analysis, it was found that the content of metal wear particles in the lubricating oil was significantly reduced, and the wear of gears and bearings was effectively controlled. Further disassembly and inspection showed that the wear degree of the gear surface was significantly reduced, and the fatigue life of the bearings was extended. This case shows that industrial gear oil additive packages can significantly improve the operation performance and reliability of wind turbine gearboxes and reduce maintenance costs.
Case 2: Application in Low-temperature Environment of a Certain Inland Wind Farm in Northern China
A certain inland wind farm in northern China is located in a severely cold region, and the minimum winter temperature can reach -45°C. Before using the special gear oil, the problem of difficult gearbox startup occurred every winter, seriously affecting the power generation. To solve the problem of difficult low-temperature startup, the wind farm used a gear oil formulated with an industrial gear oil additive package added with high-efficiency pour point depressants and low-temperature fluidity improvers.
In the first winter after using the new gear oil, the gearbox could be successfully started in a low-temperature environment of -40°C, and the startup time was shortened from the original 30 minutes to within 5 minutes. At the same time, the lubrication performance of the lubricating oil at low temperatures was guaranteed, and the wear conditions of gears and bearings were significantly improved. Through the operation verification of two consecutive winters, the power generation of the wind farm increased by 10% compared to before, and the failure rate of the gearbox decreased by 60%. This case fully demonstrates the excellent performance of industrial gear oil additive packages in dealing with extreme low-temperature environments.
Conclusion
Industrial gear oil additive packages play an indispensable and crucial role in wind turbine gearboxes. Through applications in key areas such as gear meshing, bearing lubrication, and sealing, and by meeting strict performance requirements such as high-temperature resistance, anti-fatigue performance, low-temperature fluidity, anti-wear performance, and anti-emulsification performance, industrial gear oil additive packages can effectively improve the operation reliability and service life of wind turbine gearboxes, reduce maintenance costs, and increase the overall efficiency of wind power generation systems.
From the actual application cases, it can be seen that using special gear oils formulated with appropriate industrial gear oil additive packages can significantly improve the operation performance of wind turbine gearboxes and solve the lubrication problems under complex working conditions such as high temperature, low temperature, and high load. With the continuous development of wind power generation technology, the performance requirements for wind turbine gearboxes will become higher and higher. Industrial gear oil additive packages also need to be continuously innovated and optimized to adapt to harsher working environments and higher performance requirements. In the future, with the continuous application of new materials and technologies, industrial gear oil additive packages are expected to play a greater role in improving the intelligent operation and maintenance of wind turbine gearboxes and extending their service life, providing a strong guarantee for the sustainable development of the global wind power generation industry.
The Price of Additive Packages
The price of Additive Packages varies depending on factors such as brand, specification, composition, and sales channels. If you are interested in Additive Packages, please feel free to contact us.
Supplier of Additive Packages
UNPChemicals is a professional supplier of high-quality and effective Additive Packages. We offer several remarkable products, namely Industrial Gear Oil Additives UNP IG402A,High extreme pressure (EP) type industrial gear oil additive packages UNP IG402B,Low-Odor Type Industrial Gear Oil Additive Package UNP IG402C,etc.
Industrial Gear Oil Additives UNP IG402Aare a specialized class of compounds designed to enhance the performance of gear oils in various industrial applications.These additives are carefully formulated to provide a combination of properties that improve the efficiency,longevity,and reliability of gear systems.
High extreme pressure (EP) type industrial gear oil additive packages, like UNP IG402B, are specialized blends of chemical compounds designed to enhance the performance of base oils used in industrial gear lubricants. These packages are formulated to provide exceptional protection under conditions where gears experience heavy loads, high pressures, and potential metal-to-metal contact.
The Low-Odor Type Industrial Gear Oil Additive Package UNP IG402C is a specialized blend of chemical additives designed to enhance the performance of industrial gear oils while minimizing the strong odors typically associated with traditional gear oil additives, particularly those containing sulfur-based extreme pressure (EP) agents. This additive package is mixed with base oils (mineral or synthetic) to create gear lubricants that protect industrial gearboxes under demanding conditions, such as high loads and temperatures, while being more user-friendly in terms of smell—ideal for environments where odor control is a priority.
Professional Lubricant Additive Manufacturer

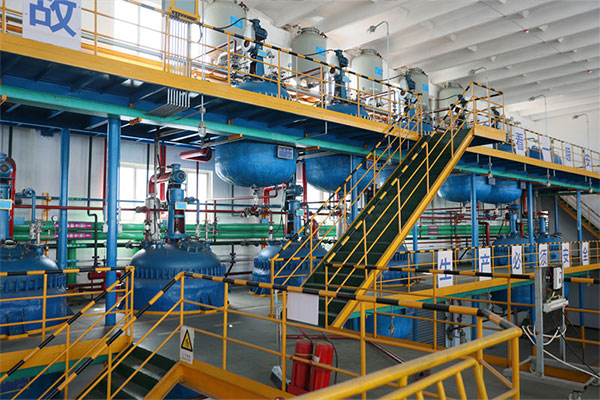

UNPChemicals,aka Luoyang Pacific United Petrochemical Co., Ltd., focuses on the application and development of special lubricating grease additives such as MODTC, MODTP, molybdenum amide, thiadiazole metal deactivators, and phosphate esters. With nearly 30 products in seven series, including extreme pressure anti-wear additives and special grease additives, it is a global manufacturer of special lubricating grease additives and a national high-tech enterprise with great influence and leading role in the industry. If you are looking for Lubricant Additive or technical information, feel free to contact UNPChemicals.
