2,5-Bis(tert-dodecyldisulfanyl)-1,3,4-thiadiazole（CAS 59656-20-1):Thiadiazole tert-dodecyl mercaptan condensate T561
The world of lubricant additives is complex and specialized, relying on a suite of chemical compounds to enhance the performance, durability, and efficiency of oils and greases. Among these unsung heroes is 2,5-Bis(tert-dodecyldisulfanyl)-1,3,4-thiadiazole, a compound known by its CAS Registry Number 59656-20-1 and commonly referred to in the industry as Thiadiazole tert-dodecyl mercaptan condensate or simply T561. This molecule stands out as a highly effective multi-functional additive, primarily renowned for its exceptional extreme pressure (EP), anti-wear (AW), and antioxidant properties. This article provides a comprehensive examination of T561, delving into its chemical identity, unique characteristics, diverse applications, synthesis pathways, and a notable producer, UNPChemicals.
What is 2,5-Bis(tert-dodecyldisulfanyl)-1,3,4-thiadiazole (CAS 59656-20-1)?

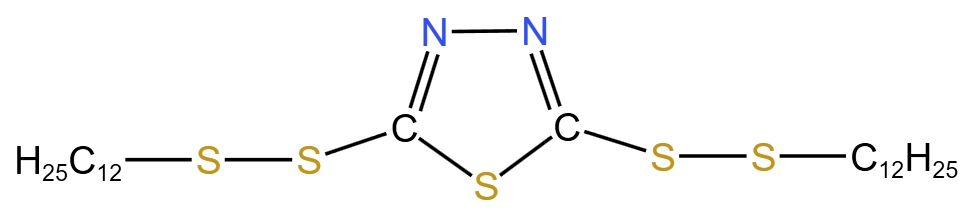

2,5-Bis(tert-dodecyl disulfanyl)-1,3,4-thiadiazole is an organosulfur compound belonging to the family of 1,3,4-thiadiazole derivatives. To understand its structure is to understand its function. The core of the molecule is a five-membered, heterocyclic ring known as a 1,3,4-thiadiazole. This ring contains two nitrogen atoms and one sulfur atom, which contributes to the compound's inherent stability and reactivity. Attached to this central ring at the 2 and 5 positions are two sulfur-sulfur (disulfanyl, -S-S-) linkages. Each of these disulfide bridges is, in turn, connected to a large, bulky hydrocarbon group known as a tert-dodecyl group (C12H25-).
The "tert-dodecyl" moiety is not a straight-chain alkyl group but a highly branched one, specifically a tertiary carbon chain. This branching is crucial for the molecule's oil solubility. The large, hydrophobic tert-dodecyl "tails" ensure that the entire molecule dissolves readily in non-polar base oils, preventing it from precipitating out. Meanwhile, the sulfur-rich "head" (the thiadiazole ring with its disulfide extensions) is responsible for its surface-active, tribological properties. Therefore, T561 is a classic example of an oil-soluble additive, designed to be delivered effectively to metal surfaces within a lubricating medium. Its molecular formula is C26H50N2S5, and it typically appears as a pale yellow to brownish viscous liquid.
Key Characteristics and Functional Mechanisms
The efficacy of T561 as a lubricant additive stems from a combination of its physical and chemical properties, which work in concert to protect metal surfaces under severe operating conditions.
Extreme Pressure (EP) Performance: This is the primary function of T561. Under conditions of high load and pressure where the lubricant film is too thin to prevent metal-to-metal contact, localized temperatures can become extremely high. The disulfide (-S-S-) bonds in T561 are relatively weak compared to carbon-carbon or carbon-hydrogen bonds. Upon contact with the hot metal surface, these bonds undergo thermolytic cleavage, releasing reactive sulfur species. This sulfur reacts with the metal surface (e.g., iron, Fe) to form a sacrificial layer of iron sulfide (FeS). This layer, while softer than the underlying metal, has a low shear strength, preventing the welding and scuffing of asperities (high points) on the contacting metal surfaces. It effectively allows the surfaces to slide past each other with reduced friction and wear, even under extreme pressure.
Anti-Wear (AW) Properties: In less severe conditions than those requiring EP action, T561 still provides excellent anti-wear protection. It is believed to adsorb onto the metal surface, forming a protective film that reduces friction and minimizes wear during boundary lubrication regimes. The polar thiadiazole ring has a strong affinity for metal surfaces, facilitating this adsorption process.
Antioxidant Capability: The 1,3,4-thiadiazole structure also imparts secondary antioxidant properties. Lubricating oils are susceptible to oxidative degradation when exposed to oxygen and high temperatures, leading to sludge, varnish, and acid formation, which accelerates equipment wear. T561 can act as a peroxide decomposer, breaking down hydroperoxides (key intermediates in the oil oxidation chain reaction) into less harmful, stable products, thereby extending the service life of the lubricant.
Metal Deactivator: The compound can form a passive layer on copper and its alloys (e.g., bronze, brass), which inhibits the catalytic effect these metals have on oil oxidation. This makes T561 particularly valuable in systems containing copper-based components.
Oil Solubility and Stability: As mentioned, the bulky tert-dodecyl chains provide excellent solubility in a wide range of mineral and synthetic base oils. The compound is also known for its good thermal stability, ensuring it remains effective at elevated operating temperatures.
Primary Applications and Industrial Uses
The multi-functional nature of T561 makes it a versatile additive employed across various demanding sectors. Its applications are predominantly found in formulations requiring robust protection against wear, high loads, and oxidation.
Gear Oils: This is a major application area. Industrial gear oils, especially those used in heavy-duty mining, steel milling, and construction equipment, are subjected to enormous pressures. T561 is a key component in EP gear oil packages for both industrial and automotive applications (e.g., manual transmissions and differentials meeting API GL-4 and GL-5 specifications).
Metalworking Fluids: In metal forming and machining operations such as cutting, grinding, and stamping, lubricants must prevent seizure and galling. T561 is used in neat oils and some soluble oil formulations to provide the necessary EP and anti-wear protection, improving tool life and surface finish of the workpiece.
Greases: High-performance greases used in bearings operating under heavy loads and slow speeds benefit greatly from the addition of T561. It enhances the load-carrying capacity of the grease, preventing bearing failure.
Engine Oils and Industrial Hydraulic Oils: While used in smaller treat rates compared to gear oils, T561 can be found in some specialized engine oils and hydraulic fluids to boost anti-wear performance and provide additional antioxidant protection, particularly in systems where copper catalysis is a concern.
It is important to note that T561 is typically used as part of a synergistic additive package alongside other components such as zinc dialkyldithiophosphates (ZDDP), detergents, dispersants, and corrosion inhibitors to create a fully formulated lubricant with a balanced performance profile.
Synthesis and Production Methodology
The synthesis of 2,5-Bis(tert-dodecyldisulfanyl)-1,3,4-thiadiazole is a multi-step organic synthesis process that requires careful control of reaction conditions. While exact industrial-scale processes are proprietary, the general synthetic route can be described as follows:
Formation of the 1,3,4-Thiadiazole Core: The synthesis typically begins with the production of 2,5-dimercapto-1,3,4-thiadiazole (DMTD). DMTD itself is a versatile intermediate synthesized by the reaction of hydrazine with carbon disulfide in the presence of a base, followed by cyclization and acidification. DMTD is a crystalline solid with two reactive thiol (-SH) groups.
Oxidative Coupling with tert-Dodecyl Mercaptan: The key step in producing T561 is the coupling of DMTD with tert-dodecyl mercaptan. This reaction involves an oxidative process. The thiol groups of DMTD react with the thiol groups of tert-dodecyl mercaptan in the presence of an oxidizing agent (such as iodine, hydrogen peroxide, or air/oxygen under controlled conditions).
The reaction can be simplified as:
DMTD (with 2x -SH) + 4x tert-C12H25-SH + [O] → T561 + 2x H2O
The '[O]' represents the oxidizing agent. This reaction effectively creates the disulfide (-S-S-) bridges that connect the thiadiazole ring to the tert-dodecyl chains.
The crude product is then purified through a series of steps, which may include washing, distillation to remove unreacted starting materials and solvents, and filtration to obtain the final product with the desired purity and color. Quality control is critical, involving analytical techniques like HPLC (High-Performance Liquid Chromatography) and GC (Gas Chromatography) to confirm chemical structure and assess purity.
A Profile of the Manufacturer: UNPChemicals
In the global landscape of specialty chemical manufacturing, UNPChemicals has established itself as a significant and reputable producer of lubricant additives, including 2,5-Bis(tert-dodecyldisulfanyl)-1,3,4-thiadiazole (T561). The company's commitment to quality, technical expertise, and customer-focused innovation has made it a trusted partner for lubricant blenders worldwide.
UNPChemicals specializes in the research, development, and production of a range of sulfur- and nitrogen-containing heterocyclic compounds that serve as EP, AW, antioxidant, and corrosion inhibitor additives. Their production facility is equipped with modern reactor systems and stringent quality control laboratories, ensuring batch-to-batch consistency and high product performance. The company's focus on T561 and similar advanced additives underscores its understanding of the evolving demands of the lubrication industry, particularly the need for products that offer multi-functionality, thermal stability, and compatibility with modern base stocks.
Beyond manufacturing, UNPChemicals provides robust technical support to its customers. This includes assistance with product selection, formulation optimization, and troubleshooting, helping lubricant companies develop finished products that meet or exceed industry specifications. Their global distribution network ensures reliable supply to various markets. By combining manufacturing excellence with a strong technical service ethos, UNPChemicals plays a vital role in the supply chain, enabling the production of high-performance lubricants that keep industrial and automotive machinery running smoothly and efficiently.
